Product Details

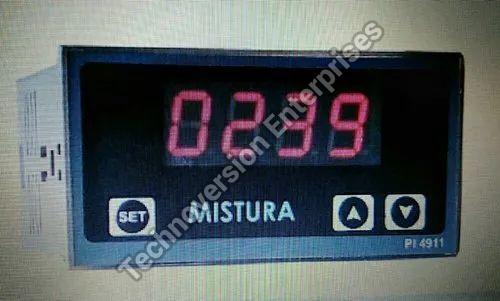

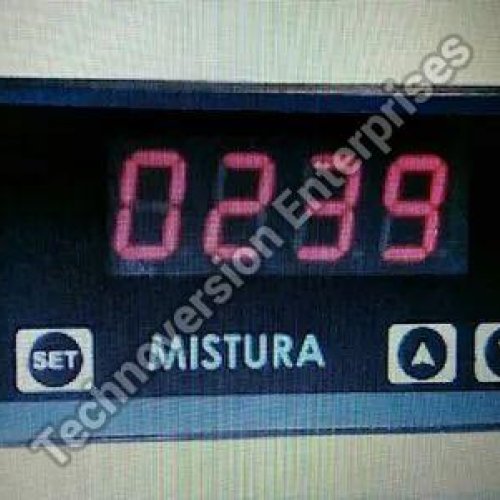

Process Indicator , 4 Digit DisplayInput: 0-10V DC , 0-20mA DC, 4-20mA DC (Configurable)Range: -999 to 9999 User Selectable, DP Selectable, Correction Facor, Filter Time, Offset Setting1) MODEL - PI-9611A
Dimension (HxWxD) mm - 96 X 96 X 100 Panel Cutout (mm) - 92 X 92
2) MODEL - PI - 7211A
Dimension (HxWxD) mm - 72x72x60
Panel Cutout (mm) - 68x68
3) MODEL - PI - 4911A
Dimension (HxWxD) mm - 48x96x67
Panel Cutout (mm) - 44x92
Display - Single display : 7 segment, 4 digit, 0.56", RED LED display.
4) MODEL - PI - 4811A
Dimension (HxWxD) mm - 48x48x102
Panel Cutout (mm) - 44x44
Display - Single Display : 7 segment, 4 digit, 0.4” RED LED display
SPECIFICATION –
Resoulation - 1 / 0.1 (Configurable)
Accuracy - ±1% of FSD
Power Supply - 230 V AC, ±10 %, 50 Hz (Linear Power Supply)
Enclosure Material - ABC Plastic Operating Temp. - o o 0 C - 55 C
Relative Humidity - Upto 95% RH Non Condensing Model -
Signal input - 0-10 V DC / 0 - 20 mA DC (Optional) / 4 - 20 mA DC (Configurable) Range - -999 to 9999 (Configurable)
Extra Features - Correction factor, Offset & Filtration rate, Range & Decimal point selectable, Reverse scalling possible.
